Vavoolux LED Strip Aluminum Profile Selection Guide
LED strips
LED strip lights have become a mainstream choice for home, commercial, and architectural lighting due to their energy efficiency, flexible installation, and rich colors. The aluminum profile is a core accessory that determines the lifespan, lighting effect, and installation quality of the LED strip. Vavoolux, deeply rooted in the linear lighting accessories field, provides one-stop LED strip aluminum profile selection and application solutions with professional aluminum craftsmanship, comprehensive profile solutions for all scenarios, and stringent quality standards. This guide comprehensively covers core knowledge, classification, selection logic, and installation techniques for aluminum profiles, helping you accurately match suitable products to create ideal lighting effects.
I. What is an LED Strip Aluminum Profile?
An LED strip aluminum profile, also known as an LED aluminum channel or LED light channel, is an extruded structural component made primarily from 6063-T5 high-precision aluminum alloy. Its main functions are to house, fix, and protect LED strip lights, while also providing efficient heat dissipation, optimizing light effects, and enhancing aesthetic appeal.
As the "exclusive carrier" for LED strip lights, the aluminum profile is not just a simple casing. It integrates a heat dissipation system, optical system, protection system, and installation system, effectively addressing common issues such as damage to bare LED strips, poor heat dissipation, uneven light, and unsightly installations. It is widely adapted for home decoration, commercial spaces, outdoor lighting, and industrial lighting scenarios.
II. Core Advantages of Vavoolux LED Aluminum Profiles
1. Efficient Heat Dissipation, Extended Strip Lifespan
Utilizing 6063-T5 aerospace-grade aluminum, with a thermal conductivity of up to 201W/(m·K), it rapidly dissipates heat generated by the LED strip, keeping the PCB temperature consistently below 70℃. This prevents light decay and color shift caused by high temperatures, extending the lifespan of the LED strip by over 50%.
2. Optical Optimization, Eliminating Light Spots and Glare
Paired with high-specification PC/PMMA diffusers, it precisely controls light transmittance and scattering effects, eliminating the granular appearance of LED beads and achieving uniform, soft linear lighting. This meets the demand for high-quality lighting without light spots and with low glare.
3. Comprehensive Protection, Durable and Robust
Dustproof, scratch-resistant, and oil-proof. Outdoor models feature upgraded waterproof sealing technology, resisting rain, moisture, and UV erosion, making them suitable for complex indoor and outdoor environments. Anodized or powder-coated surface treatments ensure corrosion resistance, colorfastness, and resistance to deformation.
4. Flexible Adaptation, Convenient Installation
Covers all types of profiles, including surface-mounted, recessed, corner, and suspended. Lengths can be freely cut, and with dedicated mounting clips, suspension wires, and end caps, installation can be completed by a single person without professional tools, suitable for both renovation and new construction projects.
5. Aesthetic Design, Blending with Space
Minimalist linear structure with silver, black, and white finishes. It can conceal wires and seamlessly integrate with walls, ceilings, and cabinets, achieving a sophisticated "light-seen-not-source" lighting effect that enhances spatial design.

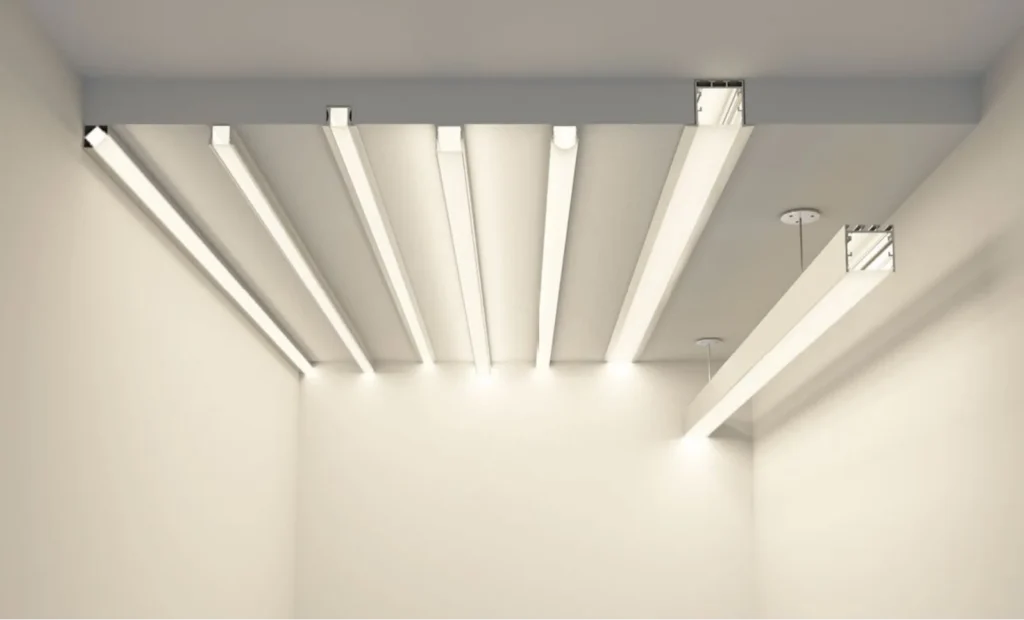

III. Vavoolux LED Aluminum Profile Classification (by Installation Scenario & Function)
(A) Classified by Installation Method
1. Surface-Mounted U-shaped Aluminum Profiles
The most versatile basic model, requiring no grooving. It is directly fixed to a flat surface using mounting clips, 3M adhesive, or screws. Suitable for under cabinets, wardrobes, desktops, and walls, offering easy installation and optimal heat dissipation.
2. Recessed T-shaped Aluminum Profiles
Requires pre-grooving for embedding into surfaces, flush with walls, cabinets, or ceilings. The hidden design offers a cleaner look, ideal for refined homes, custom cabinetry, and linear ceiling lights that pursue minimalist aesthetics.

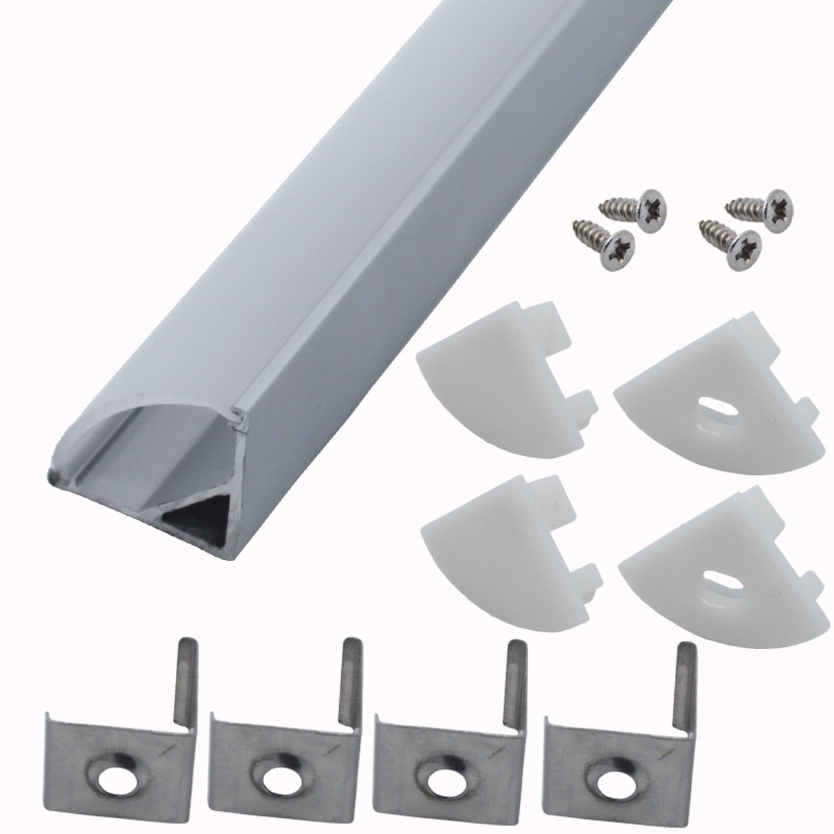

3. Corner-Specific Aluminum Profiles
Features 30°/45°/60° angled designs, precisely fitting corners of walls and ceilings, or cabinets and countertops. It directs light without dark spots or light leakage, suitable for kitchen, staircase, and display cabinet corner lighting.

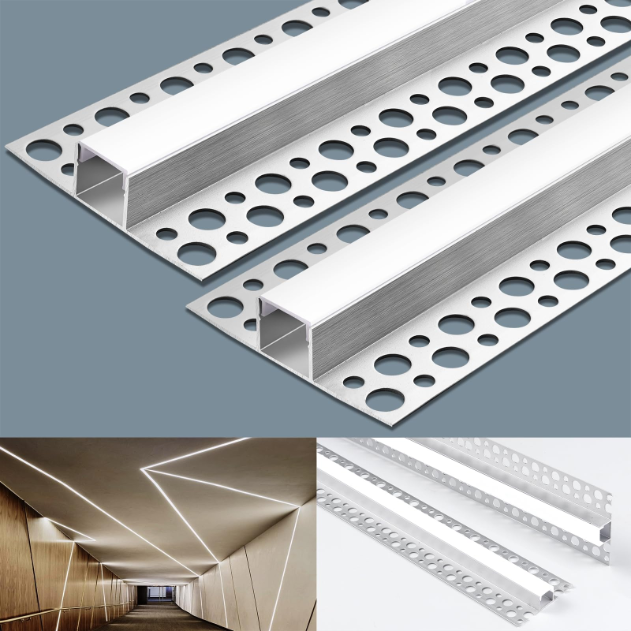

4. Plaster-in Hidden Aluminum Profiles
Specifically designed for plasterboard ceilings, completely concealing the LED strip and wires to create a seamless, integrated lighting effect. Commonly used for ambient lighting strips in shopping malls, offices, and high-end residences. Installation requires pre-planning of the ceiling structure.
5. Suspended Aluminum Profiles
Suspended from high ceilings with stainless steel suspension wires. Suitable for high-ceiling living rooms, offices, commercial lobbies, and exhibition halls. Can be customized into circular or linear shapes, serving both lighting and decorative functions.
(B) Classified by Special Function
1. Flexible Bendable Aluminum Profiles
Thin and highly ductile aluminum that can be manually bent into arcs or circles. Adapts to irregular shapes such as cylindrical columns, curved walls, and curved ceilings, solving the problem of traditional rigid profiles being unable to fit curved surfaces.
2. IP65/IP67 Waterproof Aluminum Profiles
Utilizes PC sealing tubes + silicone end caps + waterproof adhesive sealing technology, providing complete dust protection, resistance to rain spray, and short-term immersion. Suitable for outdoor facades, courtyards, balconies, bathrooms, and swimming pool surrounds in humid/outdoor environments.
3. Stair Tread Aluminum Profiles
Narrow, anti-slip design, embedded in the edge of stair treads. Lights up automatically at night for warning and anti-slip purposes. Suitable for home, cinema, shopping mall, and office building stair lighting.
4. Wardrobe Rail Aluminum Profiles
Integrated rail + lighting design, serving as both a clothes rail and a wardrobe light source. Saves space, provides soft, non-glaring light, enhancing the convenience of wardrobe use.
5. Mini Ultra-Narrow Aluminum Profiles
Internal width of only 3-5mm, suitable for ultra-narrow LED strips. Ideal for lighting in confined spaces, such as jewelry cabinets, glasses display cases, and small storage cabinets, for detailed lighting scenarios.
6. In-Ground Waterproof Aluminum Profiles
Thickened, pressure-resistant structure, waterproof and wear-resistant, capable of withstanding foot traffic. Used for ground guidance lighting, emergency exit indicators, and plaza ground illumination, offering safety and durability.
IV. Diffuser Selection: The Core Component Determining Light Effect
Vavoolux aluminum profiles are paired with two high-end diffuser materials, PC and PMMA, allowing for precise selection based on lighting needs.
1. Diffuser Material Comparison
Material | Advantages | Disadvantages | Applicable Scenarios |
PC Diffuser | Impact resistance, flame retardant, UV resistance, aging resistance, environmentally friendly | Easily scratched surface | Outdoor, high humidity, commercial spaces |
PMMA Diffuser | High light transmittance, scratch resistance, transparent texture | Easily deformed at high temperatures, brittle | Indoor, scenarios requiring high brightness |

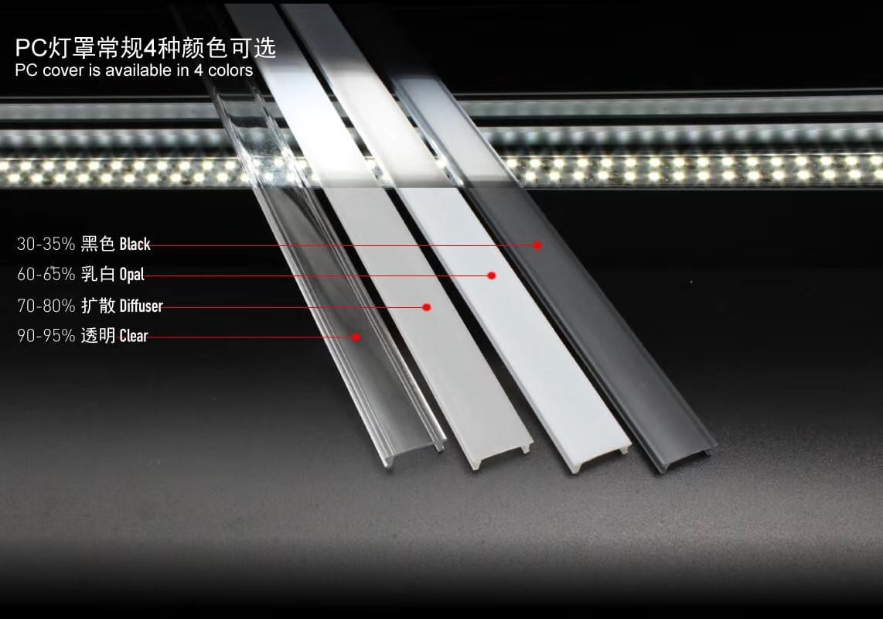

2. Classified by Light Transmittance & Effect
Transparent Diffuser: Light transmittance of 85%-95%, maximizing brightness and retaining the original light perception of the strip. Suitable for task lighting requiring high brightness (e.g., workstations, display cabinets).
Semi-Transparent Diffuser: Light transmittance of 70%-80%, providing soft light and reducing glare, balancing brightness and uniformity. General home lighting.
Opal Milky Diffuser: Light transmittance of 70%-80%, completely eliminating light spots and providing extremely uniform light. Suitable for ambient lighting and scenarios requiring no glare.
Black Diffuser: Light transmittance of 30%-35%, concealing the light strip and enhancing ambiance. Suitable for luxurious, dark-themed decor styles.
V. Aluminum Profile Surface Finish Options
Vavoolux employs industry-leading surface treatment processes, offering three standard finishes to match different decor styles while enhancing corrosion resistance:
Silver Anodized: Classic and versatile, strong metallic texture, suitable for modern, minimalist, and industrial spaces. Corrosion-resistant and easy to clean.
White Anodized: Clean and tidy, perfectly blends with walls/ceilings, suitable for Nordic, Japanese, and minimalist home styles.
Black Anodized: Premium and understated, exuding a luxurious feel, suitable for dark, retro, and high-end commercial spaces.
Customized finishes such as powder coating and wood grain transfer are available for special requirements, meeting personalized decoration needs.

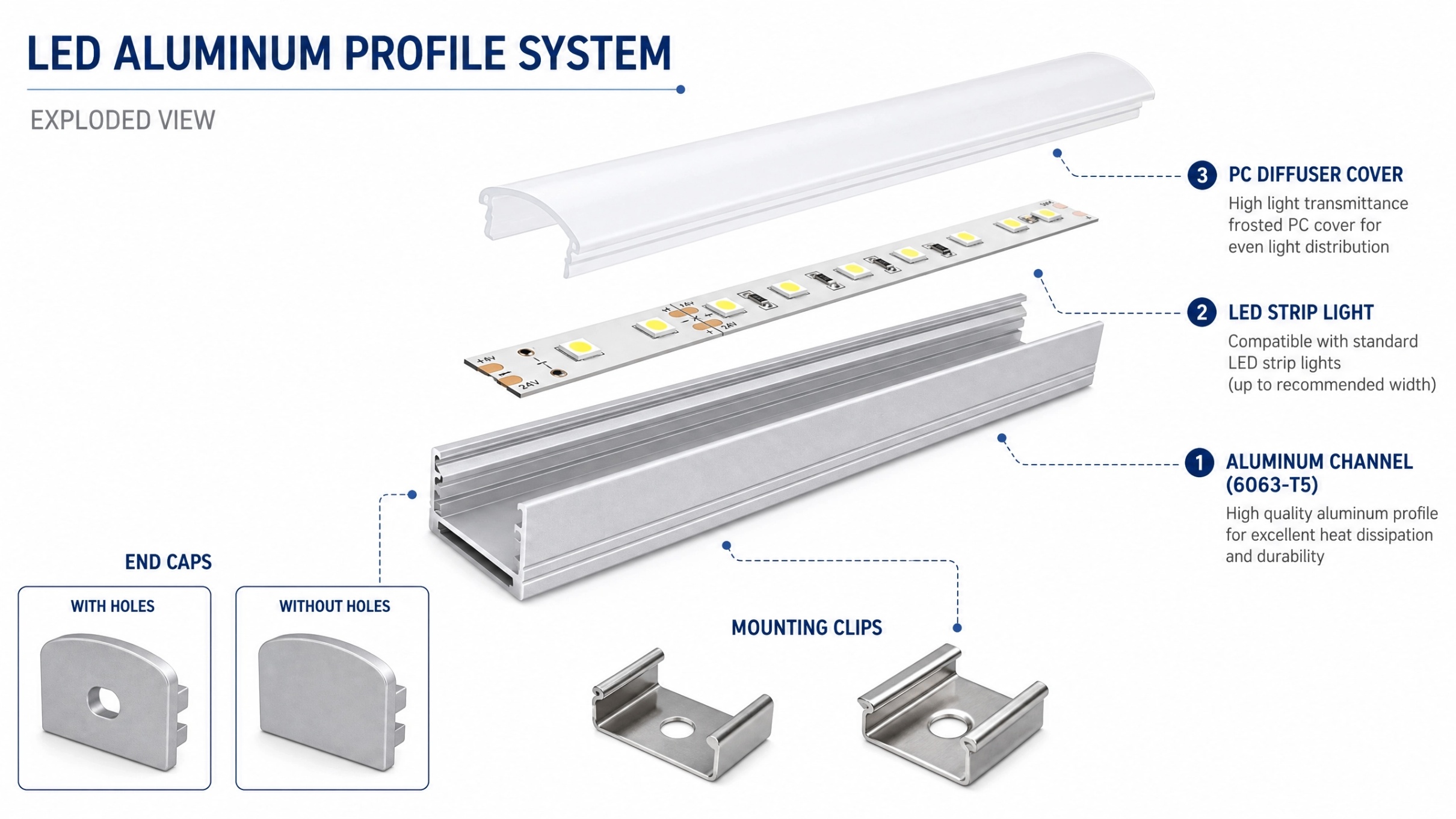

VI. Vavoolux Aluminum Profile Standard Components
A complete Vavoolux LED aluminum profile system includes the following core accessories, provided as a one-stop solution without additional procurement:
Aluminum Profile Body: Extruded from 6063-T5 high-precision aluminum, the core for heat dissipation and structure.
Diffuser: PC/PMMA material, protects the light strip and optimizes light effect.
End Caps: Plastic/aluminum, available with holes (for wiring) or without holes (for sealing), used to seal both ends of the profile.
Mounting Clips: Stainless steel/plastic material, fixes the profile, suitable for surface-mounted/corner models.
Suspension Accessories: Stainless steel suspension wires, hooks, suitable for suspended profiles.
Sealing Accessories: Silicone strips, waterproof plugs, suitable for waterproof profiles.
VII. Precise Selection: 5 Core Selection Logics
1. Match LED Strip Size (Core Prerequisite)
The internal width of the aluminum profile must be greater than the width of the LED strip, leaving a 1-2mm installation gap to prevent squeezing the strip.
Common matches: 8mm wide strip → 10-12mm internal width profile; 10mm wide strip → 12-14mm internal width profile; 12mm wide high-power strip → 15mm+ internal width profile.
The length of the LED strip should match the length of the profile. Standard profile lengths are 1m/2m/3m and can be freely cut.
2. Select Diffuser Based on Lighting Effect
For high brightness → Transparent diffuser;
For uniform light without spots → Opal diffuser;
For soft, anti-glare light → Semi-transparent diffuser;
For concealed strip ambiance → Black diffuser.
3. Select Profile Type Based on Installation Scenario
Old house renovation, no grooving conditions → Surface-mounted U-shaped profile;
New house decoration, minimalist hidden design → Recessed/plaster-in profile;
Corners, sloped spaces → Corner-specific profile;
Outdoor, bathroom, balcony → IP65/IP67 waterproof profile;
High-ceiling spaces, decorative lighting → Suspended profile.
4. Select Profile Thickness Based on Power
Low-power LED strips (<10W/m): Standard wall thickness 0.8-1.2mm profile;
Medium to high-power LED strips (10-20W/m): Thickened wall thickness 1.5-2.0mm profile for enhanced heat dissipation;
Ultra-high power LED strips (>20W/m): Deep-groove profiles with heat sinks for maximized heat dissipation area.
5. Select Protection Level Based on Environment
Indoor dry environments (living room, bedroom, study): IP20 basic model;
Humid environments (kitchen, bathroom, balcony): IP54 splash-proof model;
Outdoor open-air environments (facades, courtyards, exterior walls): IP65/IP67 waterproof model.
VIII. Key Factors Affecting Light Spots (Troubleshooting Guide)
Diffuser Transmittance: Lower transmittance results in weaker light spots. Opal diffusers can completely eliminate light spots.
Distance Between LED Beads and Diffuser: Deeper profile grooves mean greater distance, leading to more uniform light mixing and less noticeable light spots.
LED Bead Density: Higher LED bead density (e.g., COB strips) results in weaker light spots. Strips with over 500 beads per meter can achieve a dot-free lighting effect.
Profile Craftsmanship: Profiles with frosted inner walls and no reflective dead corners provide more uniform light effects.
IX. Standard Installation Steps (Vavoolux Exclusive Tutorial)
Step One: Install the Aluminum Profile Body
Surface-mounted: Fix with mounting clips on walls/cabinets, or directly paste with 3M adhesive; screws provide more stability.
Recessed: Groove according to profile dimensions, embed, and fix with buckles. The flange edge covers the groove gap.
Corner: Fit to the corner, fix with mounting clips, ensuring the angle aligns with the lighting direction.
Suspended: Fix the suspension wire base, adjust wire length, and suspend the profile.
Step Two: Install the LED Strip Light
Peel off the adhesive backing of the LED strip and smoothly paste it onto the inner wall base of the profile, ensuring no bubbles or warping. Thread the wires through the end cap hole.
Step Three: Install the Diffuser and End Caps
Snap the diffuser into the profile slot, pushing from one end to the other until a "click" sound is heard. Finally, seal both ends with end caps; for waterproof models, apply silicone sealant.
X. Vavoolux Aluminum Profiles vs. Similar Products
1. Vs. Bare COB LED Strips
Bare COB LED Strips: No heat dissipation, no protection, prone to dust accumulation, short lifespan.
Vavoolux Aluminum Profile + COB LED Strip: Efficient heat dissipation, comprehensive protection, more uniform light effect, doubled lifespan.
2. Vs. LED Neon Lights
LED Neon Lights: Highly flexible, waterproof, but poor heat dissipation, low brightness, only suitable for decoration.
Vavoolux Aluminum Profile: Rigid, excellent heat dissipation, high brightness, combines lighting and decoration, suitable for all scenarios.
3. Vs. Inferior Aluminum Profiles
Inferior Profiles: Thin aluminum, easily deformed, poor heat dissipation, diffuser yellows quickly, short lifespan.
Vavoolux Profiles: 6063-T5 high-precision aluminum, thickened walls, UV-resistant diffuser, durable for over 5 years.
XI. All-Scenario Application Solutions
Home Lighting: Living room ceilings, under cabinets, stair treads, wardrobes, entrance ambient lighting.
Commercial Lighting: Shopping mall ceilings, storefronts, display cabinets, office linear lights, restaurant ambient lighting.
Architectural Lighting: Building facades, balconies, courtyards, corridor guidance lighting, stair warning lights.
Special Scenarios: Bathroom waterproof lights, jewelry cabinet detailed lighting, irregularly shaped curved lighting.
XII. Why Choose Vavoolux LED Aluminum Profiles?
Professional Materials: All series use 6063-T5 high-precision aluminum alloy, with thermal conductivity, toughness, and durability far exceeding ordinary aluminum.
Comprehensive Product Coverage: Over 200 profile models, meeting all scenario needs including surface-mounted, recessed, waterproof, flexible, and mini.
Strict Quality Control: CE, RoHS certified. Each product undergoes heat dissipation, pressure, and waterproof tests, ensuring stable quality.
Customization Services: Supports OEM/ODM customization, allowing for custom lengths, finishes, and shapes to meet engineering and personalized requirements.
One-Stop Service: Provides selection consultation, installation guidance, and after-sales support for a worry-free experience.
XIII. Frequently Asked Questions
1. Are LED strips required to use aluminum profiles?
Low-power, short-distance LED strips can be installed bare, but for long-term use, aluminum profiles are recommended. They significantly improve heat dissipation, protection, and light effect, extending the lifespan of the LED strip.
2. Can aluminum profiles be cut?
Yes, they can be freely cut with a hand saw or electric saw. Standard lengths are 1m/2m/3m, adaptable to any size requirement.
3. Can waterproof profiles be immersed in water for a long time?
IP67 models can be immersed in water for a short period (30 minutes at 1 meter depth). Long-term immersion is not recommended. They are suitable for outdoor rain protection and bathroom splash protection.
4. Can different width LED strips share one profile?
Yes, as long as the internal width of the profile is greater than the width of the LED strip, leaving a gap. General-purpose profiles are suitable for 8-12mm wide LED strips.
Conclusion
LED strip aluminum profiles are not just "supporting roles"; they are central to determining lighting quality. Vavoolux, with its professional craftsmanship, comprehensive scenario solutions, and stringent quality, matches each LED strip with its exclusive aluminum profile, ensuring more efficient heat dissipation, superior light effects, easier installation, and more aesthetically pleasing spaces.
Whether for home decoration, commercial projects, or outdoor lighting, following this guide will help you find suitable Vavoolux aluminum profile products to create a durable, efficient, and high-value linear lighting system. Vavoolux, making linear lighting more professional and exquisite.
