1. Tool-free installation: Designed for fast, secure and efficient linear lighting connections. 2. Stable conductivity: Engineered contact structure ensures reliable electrical performance. 3. Versatile compatibility: Supports a wide range of LED strip types and lighting systems. 4. Application: Perfect for architectural, retail, hospitality and residential lighting projects.
Type | Item Code | Picture | Application Picture | Description |

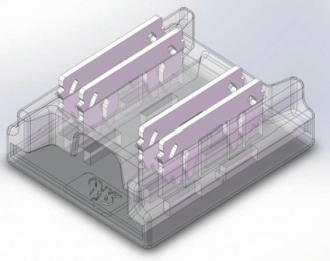

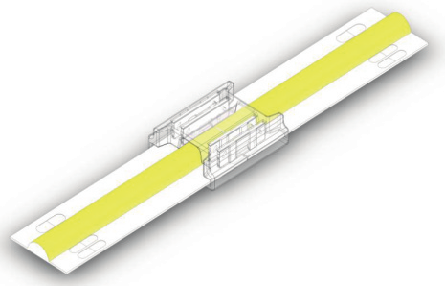

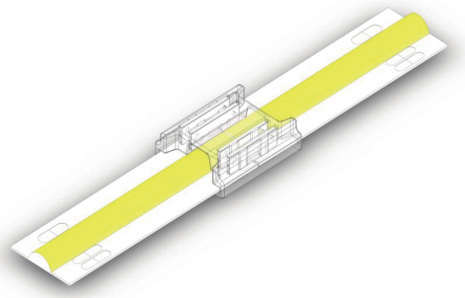

Strip to Strip | CL-4PIN-10MM-A |  |  | Strip to Strip; Used for 10MM 3PIN dual color strip & 4PIN RGB COB strip; Max current 6A |

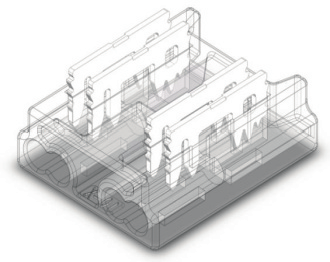

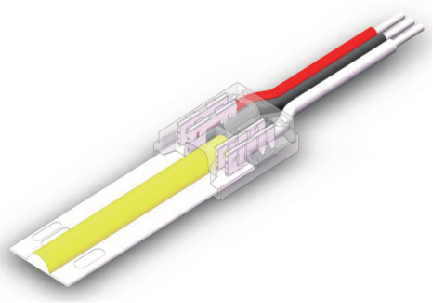

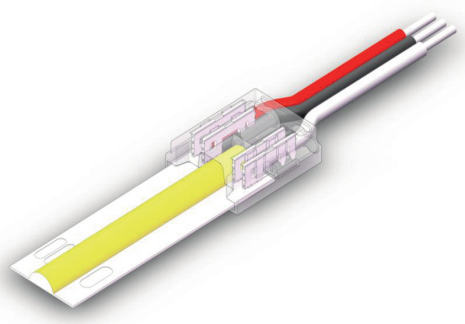

Strip to Wire | CL-4PIN-10MM-B |  |  | Strip to Wire, Without Wire; Used for 10MM 3PIN COB dual color strip & 4PIN RGB COB strip; Max current 4A; Matching wire: 22AWG standard wire |

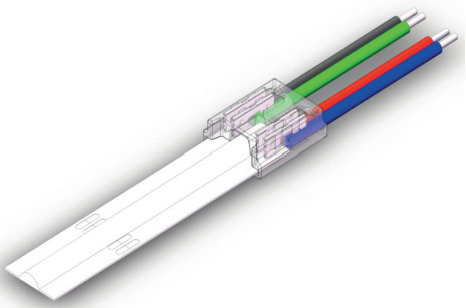

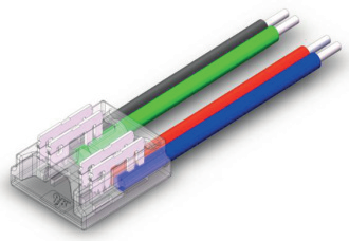

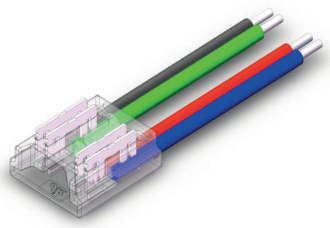

Strip to 15cm Wire | CL-4PIN-10MM-C |  |  | Strip to 15cm Wire; Used for 10MM 4PIN COB RGB strip; Max current 4A; Matching wire: 22AWG standard wire (Wire sequence: Black+/Green-/Red-/Blue-) |

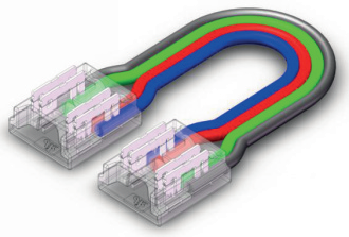

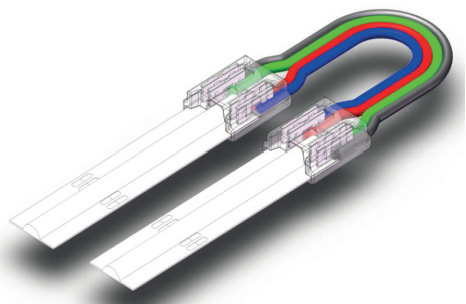

Strip to 15cm Wire to Strip | CL-4PIN-10MM-D |  |  | Strip to 15cm Wire to Strip; Used for 10MM 4PIN COB RGB strip; Max current 4A; Matching wire: 22AWG standard wire (Wire sequence: Black+/Green-/Red-/Blue-) |
