1. Tool-free installation: Designed for fast, secure and efficient linear lighting connections. 2. Stable conductivity: Engineered contact structure ensures reliable electrical performance. 3. Versatile compatibility: Supports a wide range of LED strip types and lighting systems. 4. Application: Perfect for architectural, retail, hospitality and residential lighting projects.
Type | Item Code | Picture | Application Picture | Description |

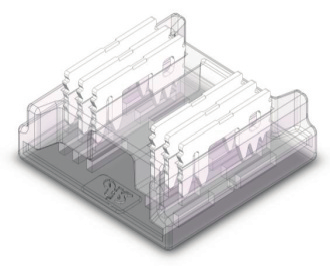

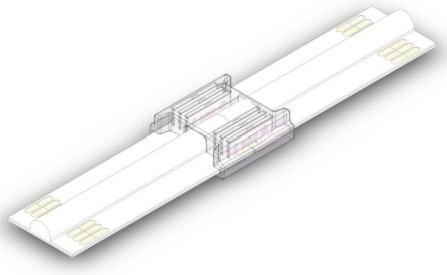

Strip to Strip | CL-6PIN-12MM-A |  |  | Strip to Strip; Used for 12MM 6PIN COB RGBCW strip; Max current 4A |

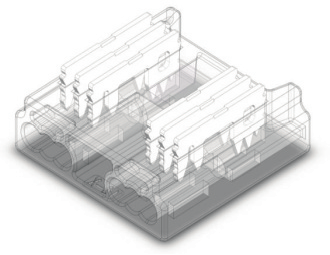

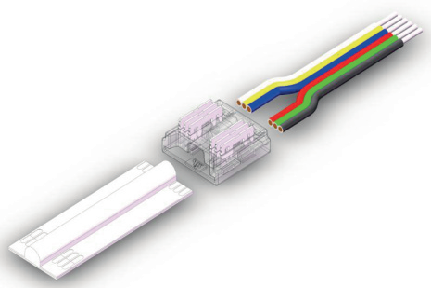

Strip to Wire | CL-6PIN-12MM-B |  |  | Strip to Wire, Without Wire; Used for 12MM 6PIN COB RGBCW strip; Max current: 4A; Matching wire: 24AWG standard wire |

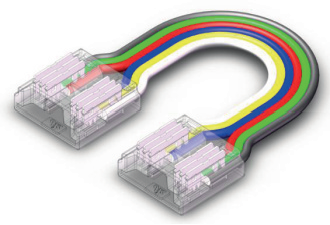

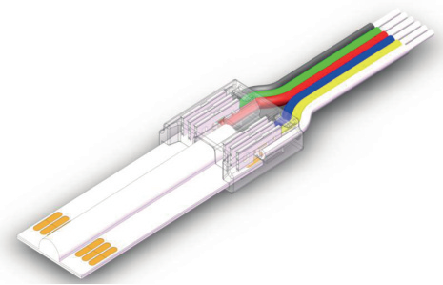

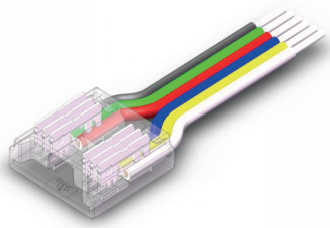

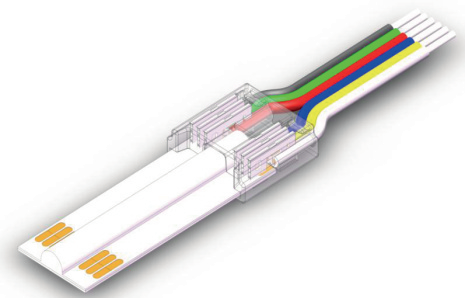

Strip to 15cm Wire | CL-6PIN-12MM-C |  |  | Strip to 15cm Wire; Used for 12MM 6PIN COB RGBCW strip; Max current: 4A; Matching wire: 24AWG standard wire (Wire sequence: Black+/Yellow-/Green-/Red-/Blue-/White-) |

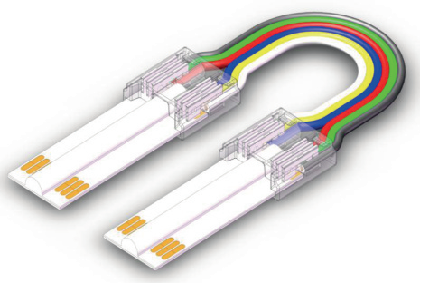

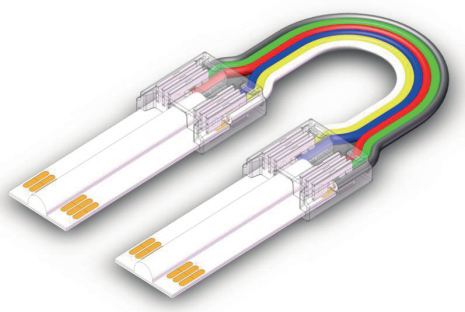

Strip to 15cm Wire to Strip | CL-6PIN-12MM-D |  |  | Strip to 15cm Wire to Strip; Used for 12MM 6PIN COB RGBCW strip; Max current: 4A; Matching wire: 24AWG standard wire (Wire sequence: Black+/Yellow-/Green-/Red-/Blue-/White-) |
