How Long Can LED Neon Flex Run? | 24V Max Run Length
How many meters can 24V LED neon flex run? CEFC LIGHTING explains single-end and dual-end maximum run lengths, voltage drop, power injection and long-run LED neon installation.
How Long Can LED Neon Flex Run?
One of the most common questions we receive at CEFC LIGHTING is:
“What is the maximum length of LED neon flex I can run?”
For many of our standard VAVOOLUX 24V LED neon flex models, a practical guideline is:
- Single-end power feed: up to 5 meters / 16.4 ft
- Dual-end power feed: up to 10 meters / 32.8 ft
- Longer than 10 meters: use additional power feeds or divide the installation into powered sections
The exact maximum run length depends on the specific LED neon model, wattage, PCB design, wire size and installation conditions.
For many architectural projects, the key point is simple:
A long visual lighting line does not have to be one long electrical circuit.
A 20m or 30m continuous lighting effect can still be achieved by dividing the installation into correctly powered sections.
What Is the Maximum Run Length of 24V LED Neon Flex?
There is no single maximum run length that applies to every 24V LED neon flex product.
Different products may use different:
- Wattage per meter
- PCB widths
- Copper thickness
- LED density
- Internal conductor designs
- Silicone dimensions
- LED configurations
That is why CEFC LIGHTING recommends checking the exact specification of each VAVOOLUX LED neon model before installation.
For many applicable 24V models, however, the following is a useful planning reference:
Power Method | Typical Recommended Maximum Run |
|---|---|
Single-end power | Up to 5m / 16.4 ft |
Dual-end power | Up to 10m / 32.8 ft |
Longer installation | Multiple powered sections |
The actual figure may vary between different neon sizes, wattages and electrical designs.

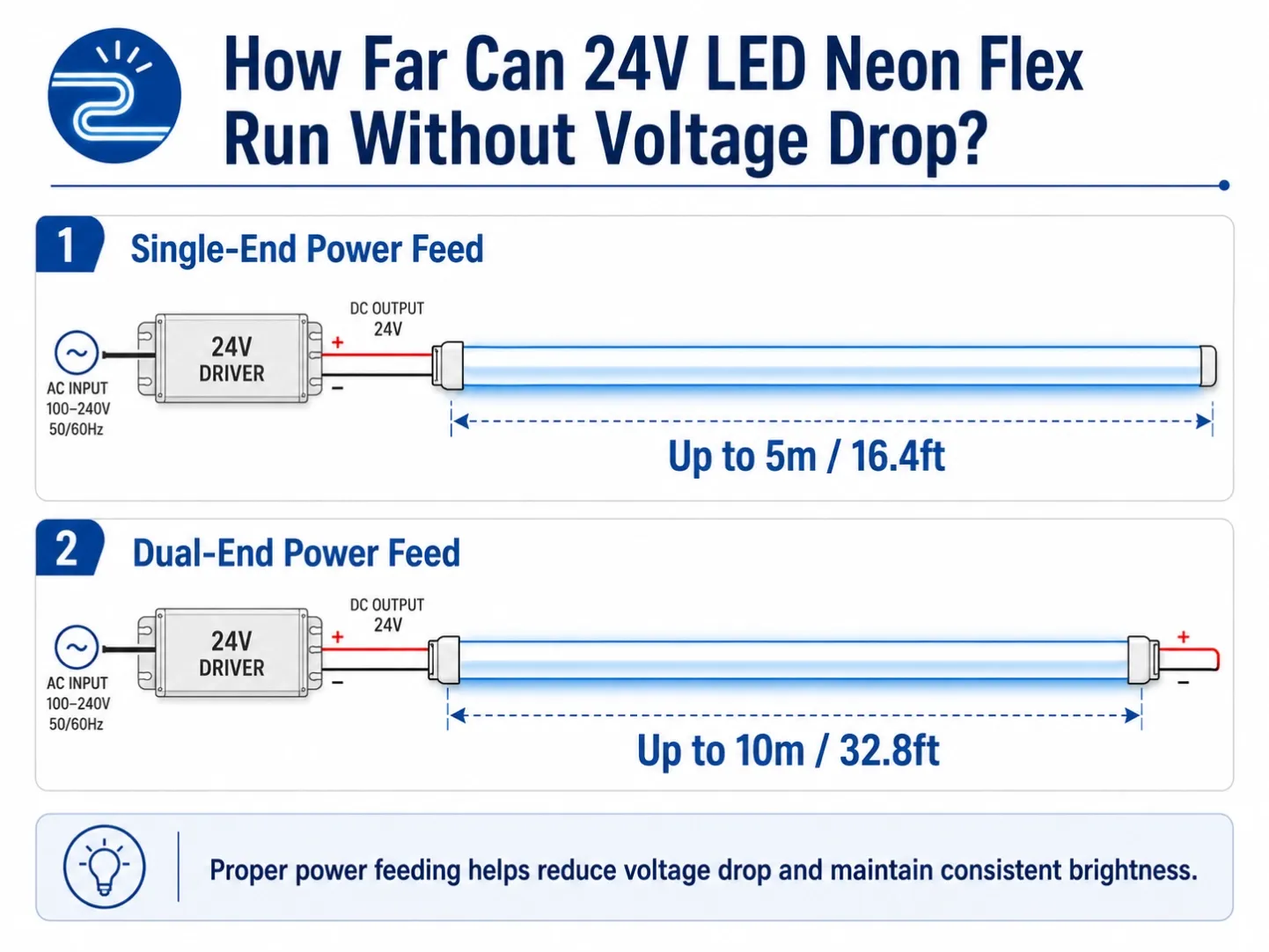

How Long Can LED Neon Flex Run From One End?
When a 24V LED neon flex is powered from only one side, this is called a single-end power feed.
For many applicable VAVOOLUX 24V LED neon flex models, we normally recommend:
Up to 5 meters / 16.4 ft
A typical configuration is:
24V Driver → LED Neon Flex → Up to 5m
This is a simple solution for shorter lighting sections such as:
- Cabinet lighting
- Retail displays
- Short ceiling lines
- Decorative lighting
- Signage
- Furniture lighting
- Short architectural details
For project orders, CEFC LIGHTING can also prepare custom-cut neon sections with lead wires and end caps installed before shipment, depending on the selected model.
This reduces cutting and connection work at the job site.

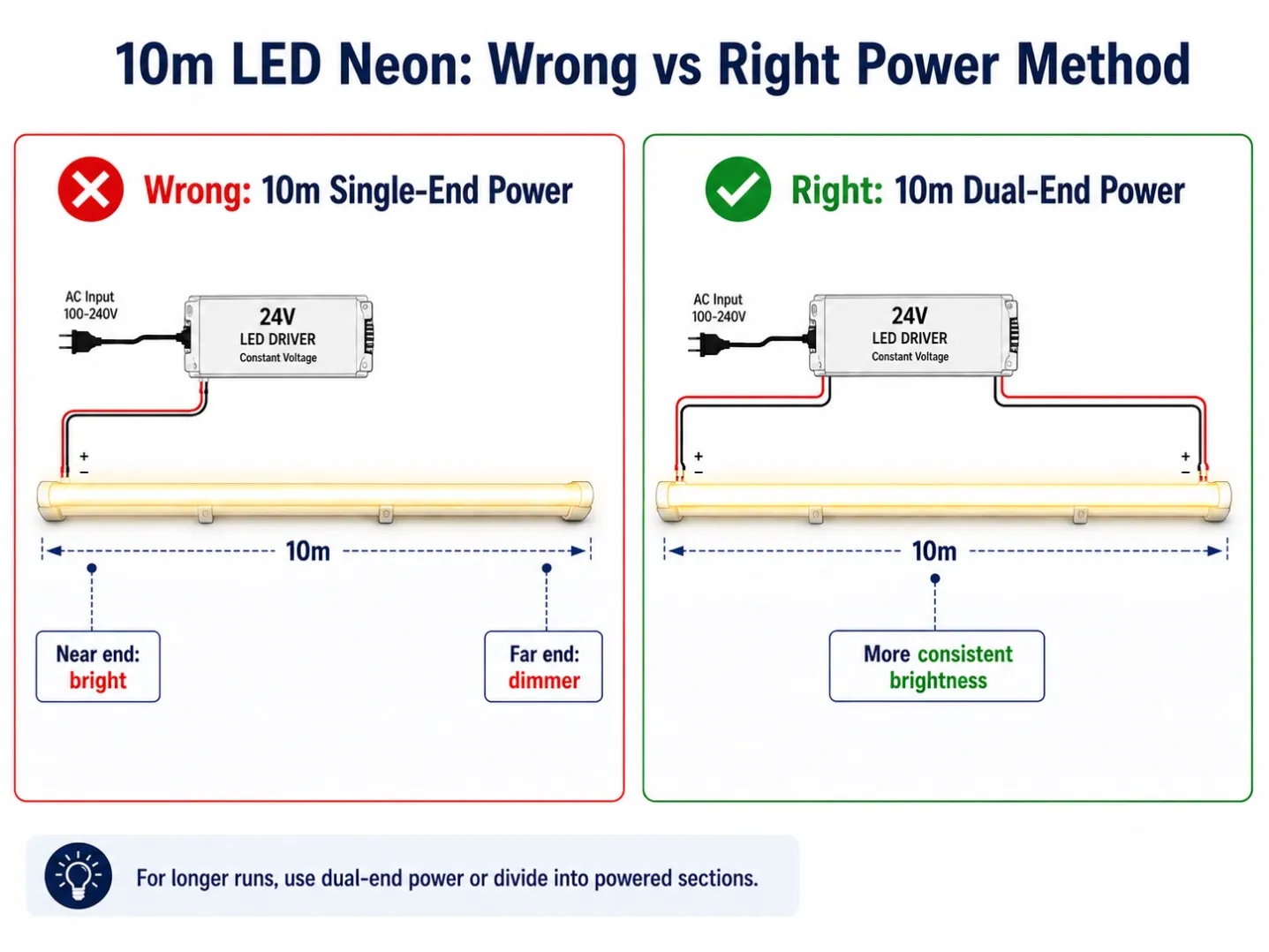

Can I Run 10m of 24V LED Neon Flex?
Yes.
For suitable models, a 10-meter 24V LED neon flex run can be possible when it is powered correctly from both ends.
Instead of:
24V Power → 10m LED Neon
use:
24V Power → 10m LED Neon ← Power Feed
This is called dual-end power feeding.
Dual-end power can help:
- Reduce visible voltage drop
- Maintain more consistent brightness
- Improve performance at the far end
- Support longer continuous runs
For many applicable VAVOOLUX 24V neon flex models, this increases the practical run length from approximately 5m single-end to approximately 10m dual-end.
Both feeds should be wired with correct polarity and connected to a properly sized 24V constant-voltage power system.

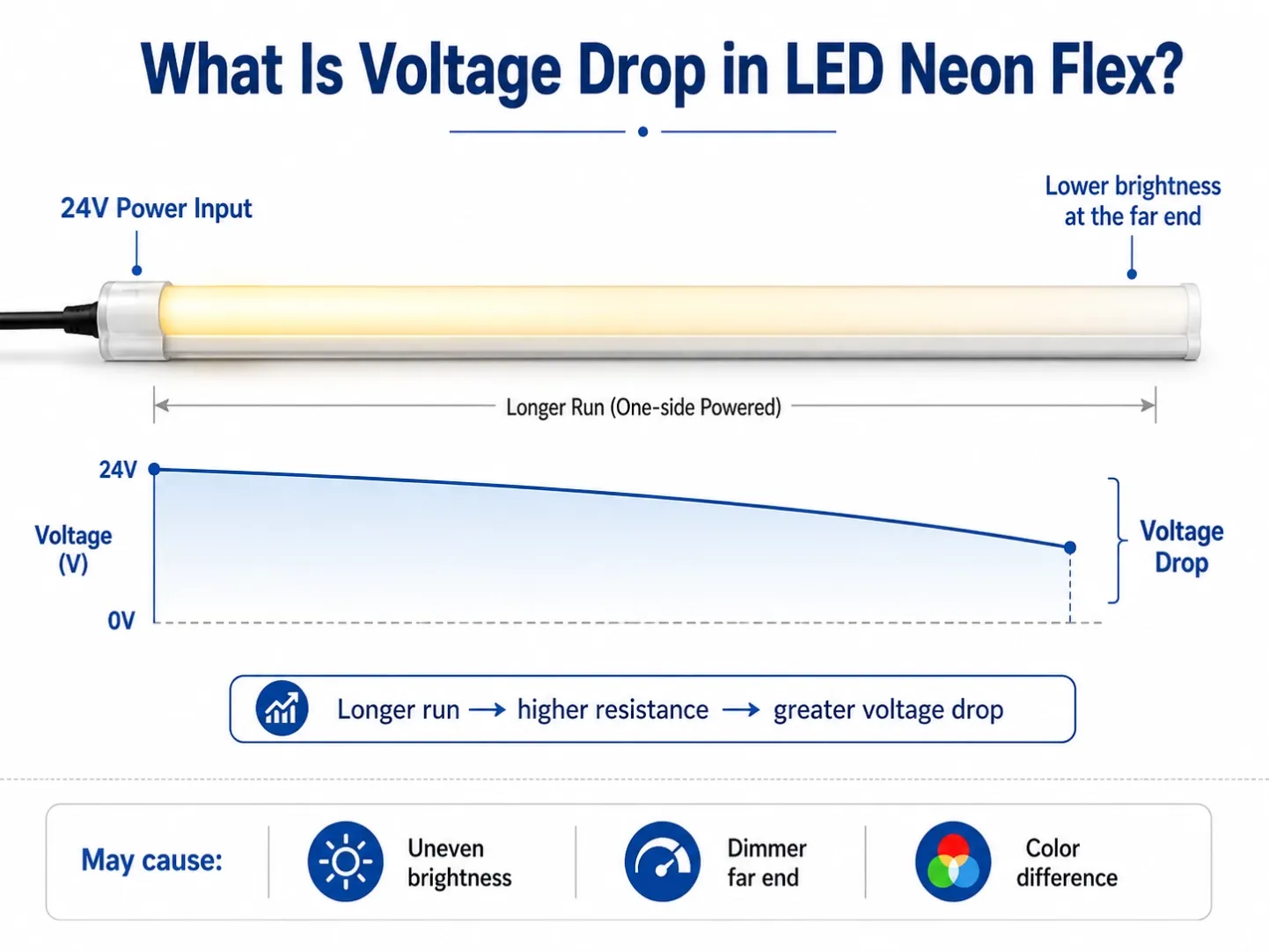

Why Does LED Neon Get Dimmer at the End?
When an LED neon run becomes too long, customers may notice that the beginning is bright while the far end becomes dimmer.
This is usually caused by voltage drop.
As electrical current travels through the conductors and PCB inside the LED neon flex, electrical resistance gradually reduces the available voltage.
In simple terms:
Longer run → more resistance → more voltage drop
Possible signs of excessive voltage drop include:
- Lower brightness at the far end
- Uneven illumination
- Color difference
- Poor RGB or RGBW color consistency
- Reduced performance at the end of the run
This is why maximum run length should be confirmed before the LED neon is installed.
Can LED Neon Run More Than 10 Meters?
Yes.
A complete LED neon installation can be much longer than 10 meters.
For example:
- 20m
- 50m
- 100m
- 200m+
The important point is that the complete project normally should not be powered as one single electrical run.
For example, a 20-meter project can be divided into:
10m + 10m
or:
5m + 5m + 5m + 5m
depending on the selected neon flex model and electrical layout.
The finished lighting can still look visually continuous.
For larger architectural projects, CEFC LIGHTING can review the project drawing and help determine suitable section lengths and power-feed positions before production.
How Often Does LED Neon Need Power Injection?
Another common customer question is:
“How many meters before I need another power feed?”
The answer depends on the maximum run length of the exact LED neon model.
For example, if the recommended single-end maximum length is:
5 meters
then another power feed should normally be introduced before exceeding that limit.
If a suitable model allows:
10 meters with dual-end power
then power can be supplied from both ends of the same section.
For longer projects, the installation may be arranged as:
10m section | 10m section | 10m section
with each section receiving the correct power feed.
This is often better than trying to operate one 30m electrical run.
Does Wattage Affect LED Neon Maximum Run Length?
Yes.
Two LED neon flex products can both operate at 24V but still have very different maximum run lengths.
For example, a lower-wattage neon flex generally requires less current than a higher-wattage product.
Higher current can make voltage drop more significant.
Maximum run length may be affected by:
- Wattage per meter
- PCB copper thickness
- PCB width
- LED density
- Neon size
- LED type
- Single color / RGB / RGBW configuration
- Internal electrical design
- Operating temperature
This is why CEFC LIGHTING does not recommend assuming that all 24V LED neon flex can run the same distance.
Always check the exact model.
Does the Distance From the Power Supply to the LED Neon Matter?
Yes.
Voltage drop can also happen in the feeder cable between the LED driver and the LED neon flex.
For example:
The LED neon itself may only be 5m long, but the driver could be installed 15m away.
In this situation, the cable between the driver and neon can also contribute to voltage loss.
Long feeder distances may require:
- Larger wire gauge
- Shorter cable routes
- Separate home-run cables
- Additional power feeds
- Different driver locations
When reviewing a project, CEFC LIGHTING recommends considering both the neon length and the driver-to-neon cable distance.
How Do I Calculate the LED Neon Power Supply Size?
First calculate the total LED load.
For example:
LED neon power: 10W/m
LED neon length: 10m
Total LED load:
10W × 10m = 100W
It is generally better not to operate the power supply continuously at its absolute rated maximum.
Using approximately a 20% safety margin:
100W ÷ 0.8 = 125W
Therefore, depending on the exact project, a suitable driver in the approximately 120–150W range may be considered.
Also check:
- 24V DC output
- IP rating
- Dimming requirements
- Installation temperature
- Cable distance
- Local electrical requirements
For project orders, CEFC LIGHTING can also help match VAVOOLUX LED neon flex with suitable power supplies and controllers.
Can LED Neon Flex Be Custom-Cut at the Factory?
Yes.
For many project applications, factory cutting can save significant installation time.
Instead of sending one long roll and asking the installer to cut, wire and waterproof everything on site, CEFC LIGHTING can prepare selected VAVOOLUX LED neon models according to project dimensions.
Available options may include:
- Custom-cut lengths

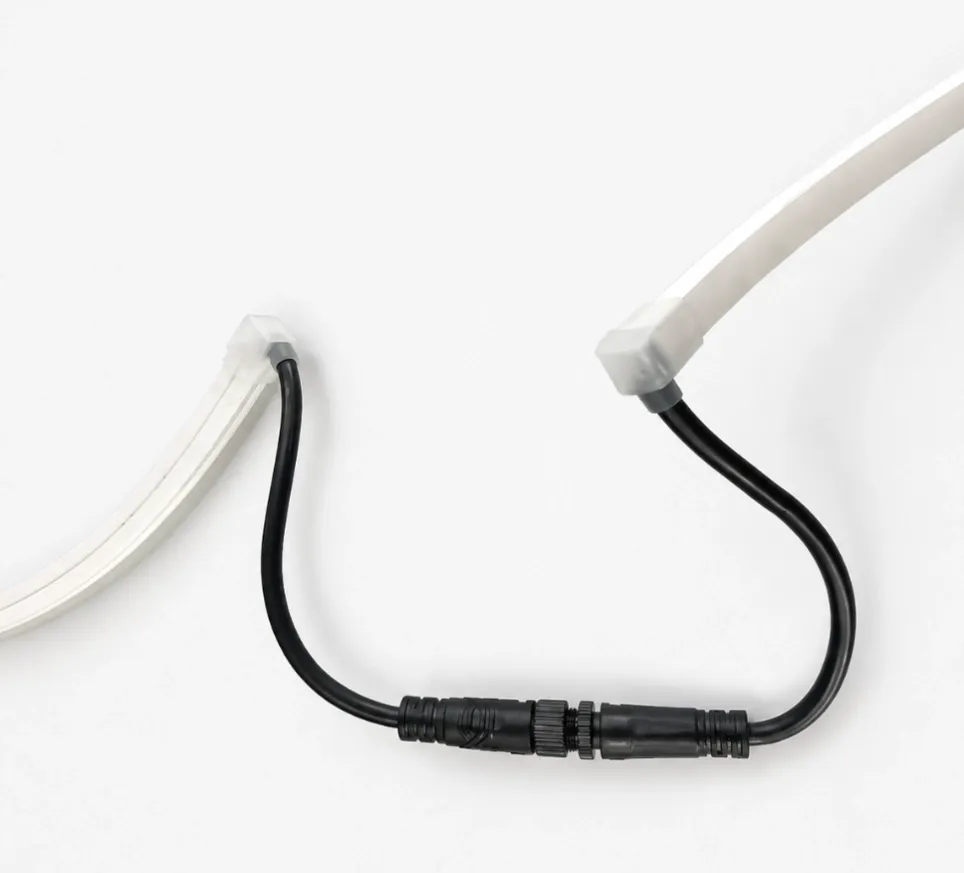

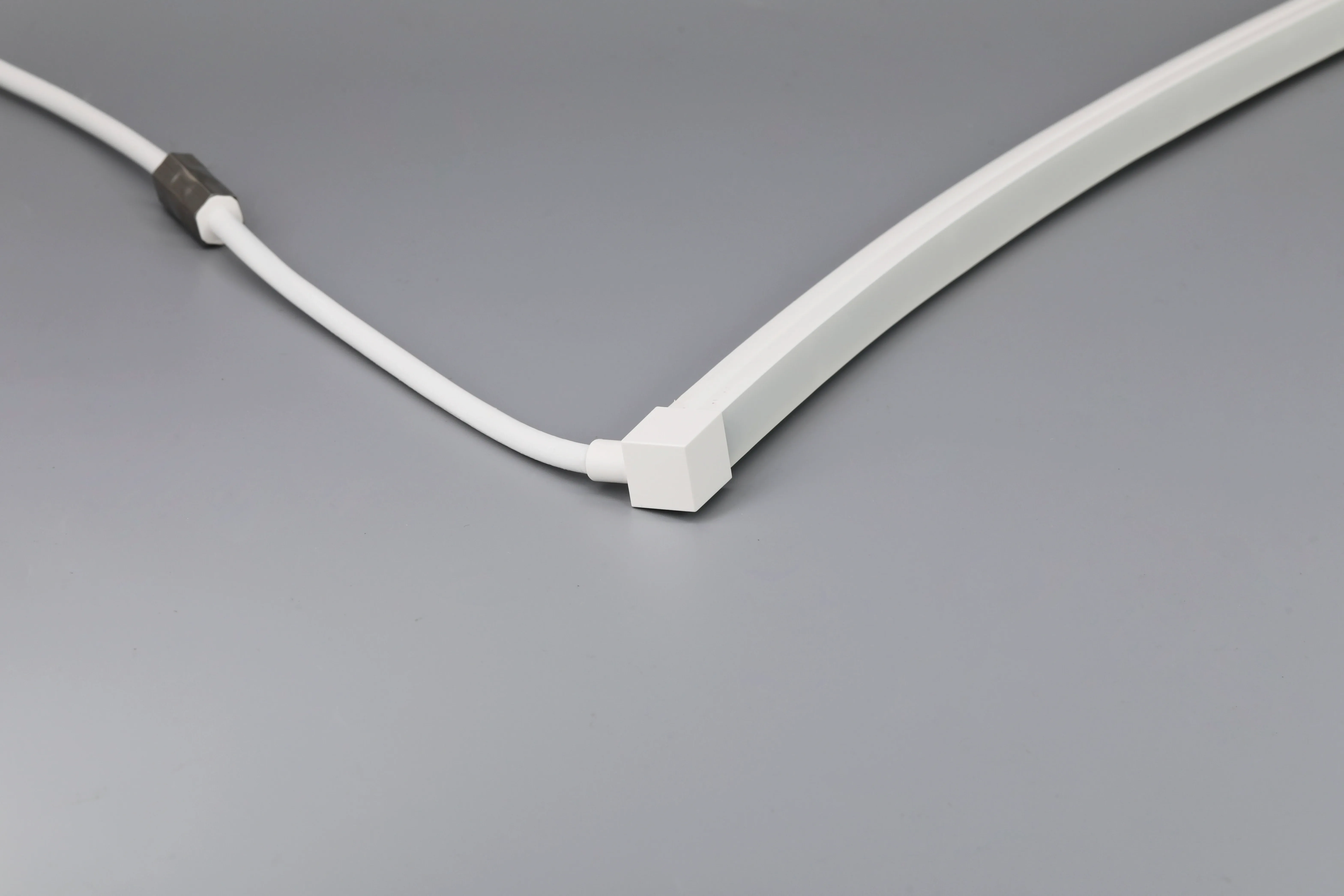

- Factory-installed lead wires
- End caps

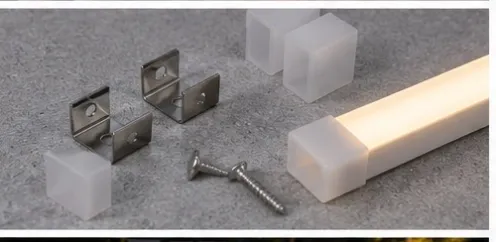

- Waterproof sealing
- Custom wire lengths
- Mounting accessories
- Aluminum profiles
- Power supplies
- Controllers
- Wiring diagrams
For example, a project may require:
- 9.5m
- 6.3m
- 4.5m
- 3.2m
- 2.0m
Each section can be prepared according to the project drawing before shipment.
This can reduce:
- On-site cutting
- Installation time
- Connection mistakes
- Waterproof sealing risk
Can LED Neon Flex Around Curves?
Yes, but the correct neon type must be selected.
Depending on the model, LED neon flex may be designed as:
- Top bend
- Side bend
- 360° flexible neon
Each model also has a minimum bending radius.
The neon should not be forced to bend in the wrong direction, as this may damage the PCB or internal conductors.
When customers send architectural drawings, CEFC LIGHTING can help recommend a suitable VAVOOLUX neon shape and bending direction.

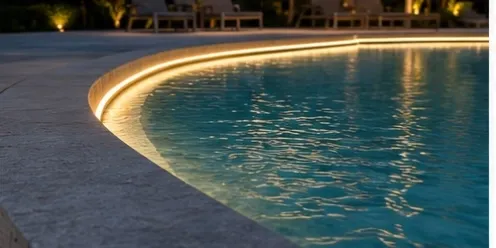

Can 24V LED Neon Flex Be Used Around a Swimming Pool?
Yes, LED neon flex is commonly used for poolside and landscape lighting.
For lighting installed around a pool edge without continuous submersion, a suitable outdoor-rated product such as an IP67 neon flex may be considered depending on the exact installation.
For permanently submerged installations, an LED lighting product specifically designed for underwater use should be selected.
Electrical connections and power supplies should always comply with local installation and safety requirements.
24V LED Neon Maximum Run Length: Quick Answer
For many applicable VAVOOLUX LED neon flex products by CEFC LIGHTING:
Single-end power feed
Up to approximately 5m / 16.4 ft
Dual-end power feed
Up to approximately 10m / 32.8 ft
Longer than 10m
Use:
Multiple powered sections and/or additional power injection
The exact maximum run length must always be confirmed according to the selected LED neon model.
Frequently Asked Questions
How long can 24V LED neon flex run?
For many standard VAVOOLUX 24V LED neon flex models, the typical recommended run is approximately 5m with single-end power and up to 10m with dual-end power.
Always confirm the exact product specification.
Can LED neon flex run 10 meters?
Yes.
For suitable 24V LED neon flex models, a 10m run can be possible when power is correctly supplied from both ends.
Can I run 10m of LED neon from one end?
For a model designed for approximately 5m maximum single-end operation, this is not recommended.
The far end may become dimmer because of voltage drop.
What is the maximum length of 24V LED neon flex?
There is no universal maximum length.
It depends on the product's wattage, PCB design, current, wire size and power-feed method.
How often should I inject power into LED neon?
It depends on the specific product.
For some VAVOOLUX 24V LED neon models, a single-end feed may support approximately 5m, while dual-end power can support approximately 10m.
Why does LED neon become dimmer at the far end?
The most common cause is voltage drop caused by electrical resistance over a long run.
Can I install 20 meters of continuous LED neon?
Yes visually.
Electrically, however, the installation should normally be divided into multiple shorter powered sections.
For example:
10m + 10m
may be preferable to one 20m electrical run.
Can CEFC LIGHTING make custom LED neon lengths?
Yes.
For many VAVOOLUX LED neon flex models, CEFC LIGHTING can provide custom cutting, lead wires, end caps, waterproof sealing and project-specific wiring solutions.
Need Help With Your LED Neon Project?
If you need to determine the correct LED neon length and power-feed method, send CEFC LIGHTING:
- LED neon size or model
- Length of each section
- Required CCT or color
- Wattage or brightness requirement
- Indoor or outdoor application
- Distance from driver to LED neon
- Project drawing, if available
Our team can help review:
LED neon model + maximum run length + driver size + power-feed layout + custom-cut lengths
before production.
