How to Power Ultra-Long LED Strips Without Dimming: A Comprehensive Guide

Long COB LED strip

LED strip lighting has revolutionized modern illumination, offering unparalleled flexibility and aesthetic appeal for various applications, from subtle accent lighting to vibrant architectural statements. However, when deploying ultra-long LED strips, a common and frustrating challenge emerges: voltage drop, leading to noticeable dimming and inconsistent brightness along the strip. This phenomenon can undermine the visual impact of even the most meticulously designed lighting projects.



The Problem: Unwanted Dimming in Long LED Runs

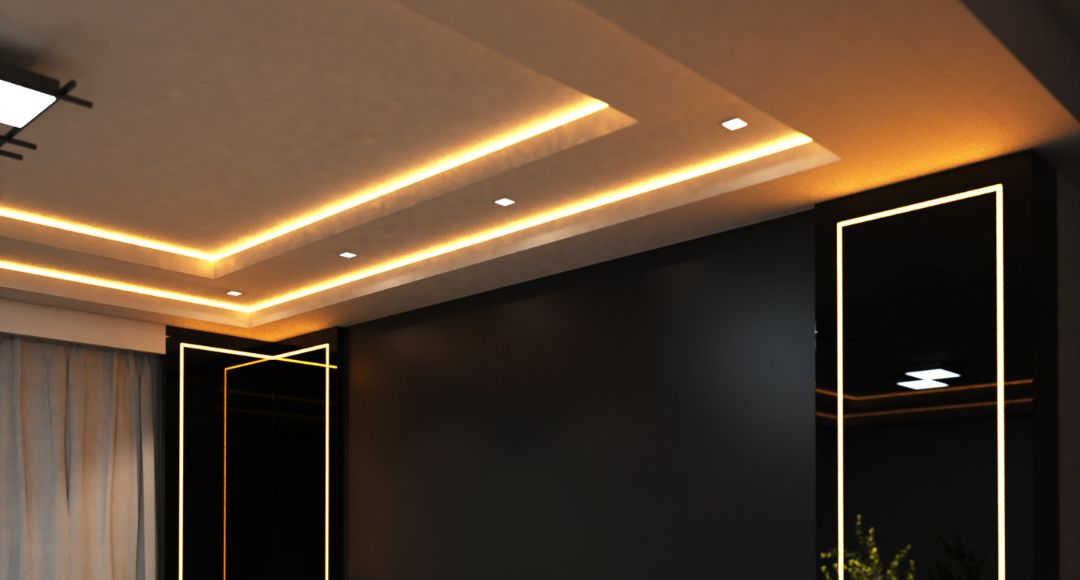

Imagine a beautifully lit cove or a long linear fixture where the light starts bright at one end and gradually fades towards the other. This uneven illumination, often perceived as a 'dimming effect,' is a direct consequence of voltage drop. In practical applications, this can manifest as:

Inconsistent Brightness: The LEDs furthest from the power source appear significantly dimmer.

Color Shift: In RGB or tunable white strips, voltage drop can alter the color temperature or hue.

Reduced Lifespan: LEDs operating under insufficient voltage can be stressed, potentially shortening their operational life.

Aesthetic Compromise: The overall visual appeal of the lighting design is severely diminished.



Understanding Voltage Drop: The Root Cause

Voltage drop occurs due to the inherent electrical resistance within the copper traces of the LED strip itself. As electricity flows through these traces, a portion of the voltage is 'lost' as heat, resulting in a lower voltage reaching the LEDs further down the line. The extent of voltage drop is influenced by several key factors:

Length of the LED Strip: The longer the strip, the greater the cumulative resistance and thus, the more significant the voltage drop.

Wire Gauge/Copper Thickness: Thinner copper traces (common in cheaper strips) offer higher resistance, exacerbating voltage drop. Higher quality strips, like those from Vavoolux, often feature thicker copper for better conductivity.

Power Consumption (Wattage): Higher wattage strips (more LEDs per meter, or brighter LEDs) draw more current, leading to a more pronounced voltage drop over distance.

Input Voltage: Lower voltage systems (e.g., 12V) are more susceptible to voltage drop over distance compared to higher voltage systems (e.g., 24V or 48V), as they require higher current for the same power output.



Effective Solutions for Ultra-Long LED Strip Installations

Addressing voltage drop requires a strategic approach, often combining several techniques to ensure uniform brightness across the entire length of your LED installation. Here are the most effective solutions:

1. Power Injection (Parallel Wiring)

This is one of the most common and effective methods for long runs. Instead of powering the strip from a single point, you inject power at multiple points along the strip. This reduces the effective length of the circuit that each section of the strip needs to draw power through.

How it works: Run additional wires from your power supply to intermediate points along the LED strip. This creates parallel circuits, distributing the current load and minimizing the distance electricity has to travel through the strip's internal traces.

Best for: Medium to long runs where the power supply can be centrally located or easily routed to multiple points.





2. Shorter Runs in Parallel

For extremely long installations, it's often more practical to break down the total length into several shorter, manageable segments. Each segment is then wired directly back to the power supply in a parallel configuration.

How it works: Cut your ultra-long strip into several shorter lengths (e.g., 5-meter sections). Each 5-meter section is then connected directly to the power supply using its own pair of wires. This ensures that each section receives the full voltage.

Best for: Very long runs where a single continuous strip would experience severe voltage drop, or when installing in modular sections.



3. Utilize Higher Voltage LED Strips

Switching from 12V to 24V or even 48V LED strips can significantly extend the maximum run length before voltage drop becomes an issue. Higher voltage systems draw less current for the same power, reducing the impact of resistance.

How it works: A 24V strip will have half the current draw of a 12V strip for the same wattage, meaning it can run twice as long before experiencing the same voltage drop percentage. Vavoolux offers a range of high-quality 24V LED strips, ideal for professional installations requiring extended runs without dimming.

Best for: Any long-run application where a higher voltage power supply is feasible, offering a simpler wiring solution than extensive power injection.





4. Constant Current LED Strips

While most LED strips are constant voltage (CV), constant current (CC) LED strips are specifically designed to combat voltage drop over long distances.

How it works: CC LED strips incorporate integrated circuits (ICs) that regulate the current to each LED segment, ensuring consistent brightness regardless of minor voltage fluctuations along the strip. This allows for much longer continuous runs without dimming.

Best for: Professional and commercial projects where maximum run length and absolute brightness uniformity are critical, and where the budget allows for specialized CC strips.



5. Use Thicker Gauge Wires and High-Quality Strips

While not a standalone solution for ultra-long runs, using appropriately thick gauge wires for connections and investing in high-quality LED strips with robust copper traces will always minimize resistance and improve performance.

Vavoolux's Commitment to Quality: Vavoolux prioritizes the use of premium materials and advanced manufacturing techniques in their LED strips, ensuring optimal conductivity and minimal voltage drop. Their products are engineered for durability and consistent performance, making them a reliable choice for demanding projects.

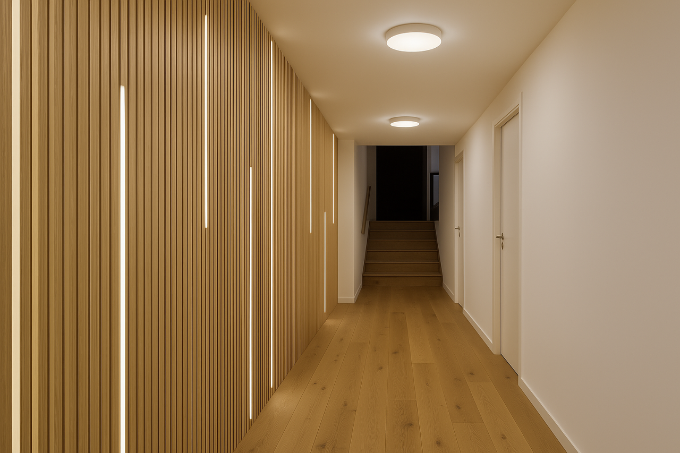

Real-World Application Example: Architectural Linear Lighting

Consider an architectural project requiring a continuous linear light source spanning 20 meters across a large hall. Using a standard 12V LED strip without proper planning would inevitably lead to severe dimming towards the end. A practical solution, leveraging Vavoolux products, might involve:

Choosing 24V Constant Voltage LED Strips: This immediately doubles the effective run length compared to 12V.

Strategic Power Injection: Instead of one power feed, multiple power feeds are run from a central 24V power supply to points every 5 meters along the 20-meter run. This ensures no single section of the strip relies solely on its internal traces for more than 2.5 meters.

High-Quality Aluminum Profiles: Utilizing Vavoolux aluminum profiles not only provides excellent heat dissipation but also offers a clean, professional finish for the linear lighting, protecting the LED strips and enhancing their lifespan.

This combination ensures that the entire 20-meter run maintains uniform brightness, delivering the intended aesthetic impact without compromise.





Conclusion

Powering ultra-long LED strips without dimming is a common challenge, but one that can be effectively overcome with a solid understanding of voltage drop and the application of appropriate solutions. By strategically implementing power injection, opting for higher voltage or constant current strips, and choosing high-quality products from reputable brands like Vavoolux, you can ensure your LED installations deliver consistent, brilliant illumination across their entire length. Invest in quality and smart design to bring your lighting visions to life, brightly and uniformly.
